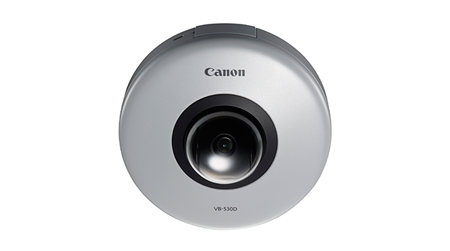

Canon VB-S30D

VB-S30D

The easy-to-install Full HD PTZ Minidome network security camera with new ultra-compact zoom lens technology. Ideal for indoor security and monitoring in businesses and venues.

VB-S30D

Descripción general

  • Ultra-compact PTZ Minidome design
  • Full HD at 30fps
  • CMOS sensor for high performance in low light
  • High-resolution wide angle Canon lens with 3.5x optical zoom (4x digital)
  • Multi-streaming of MJPEG and H.264 video
  • Direct recording/playback from MicroSD card (64GB)
  • ONVIF v2.2 and Profile S compliant

Características detalladas

Examina con más detalle Canon VB-S30D

Full HD resolution


The ultra-compact VB-S30D PTZ Minidome network security camera features Full HD (1920 x 1080) resolution at 30fps. A CMOS sensor delivers impressive image quality without colour bleeding or blurred lines. Auto Smart Shade Control (SSC) optimises exposure to improve highlights and correct dark areas in back-lit scenes or low light conditions, offering a true Day/Night operation.

High quality lens


The new ultra-compact wide-angle lens features a 3.5x optical zoom (with additional 4x digital). Pan, Tilt, Zoom (PTZ) capability makes it simple to move the camera to programmed pre-set positions. With a wide angle and low distortion, the high quality Canon lens delivers more light to the camera's sensor - achieving brighter and better defined images.

Dual imaging processors


The dual image processors - DIGIC DV III and DIGIC NET II - enable seamless capturing, processing, encoding and transmitting of images. The internal programming has been re-engineered to deliver multiple H.264 and/or MJPEG streams in HD or lower resolutions. In addition to multi-streaming, the cameras can also do simultaneous streaming. The H.264 encoder creates high-quality and high compression video, for smooth surveillance in a range of environments.

Compatibility and convenience


The VB-S30D integrates seamlessly thanks to its network camera SDK and HTTP protocol specification. Canon is a full member of ONVIF - the industry forum dedicated to the development of a global IP-based physical security interface standard. Compliance with the latest ONVIF V2.2 and Profile S makes it convenient to create a solution with ONVIF-compliant video management software.

In-built analytics


The camera's comprehensive set of intelligent features includes Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detect

Especificaciones técnicas

Obtén más información sobre Canon VB-S30D, sus funciones y lo que puede hacer.

DIGIC NET II

Procesamiento de red eficiente

Digic DV III

Gestiona la calidad de imagen y el control

Full HD

Resolución Full HD

PTZ

Panorámica, inclinación y zoom

Drag to move

Control PTZ sencillo

Area zoom

Dirección sencilla

Intelligent Function

Análisis de contenido de vídeo

Power over Ethernet

Alimentación a través de Ethernet (PoE)

microSD

Grabación avanzada

CCMT

Gestión múltiple de varias

  • Unidad principal VB-S30D
  • CD-ROM de instalación
  • Cable de seguridad para prevención de caídas
  • Tornillo para el cable de seguridad
  • Plantilla para la instalación de la cámara
  • Guía de instalación
  • Folleto de tarjeta de garantía

Calculadora de ángulo de visión (AOV)

Calculadora de espacio en disco necesario (RDS)

Simulador de diseño de cámara (CLS)
