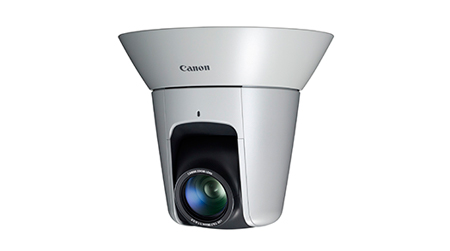

Canon VB-M42

VB-M42

The VB-M42 1.3 MP PTZ IP security camera combines a powerful 240x zoom, excellent low-light capability and fast auto-focus. Flexible installation options for indoor and outdoor use.

VB-H43

Descripción general

  • Capture clear, detailed images in 1.3 MP resolution at up to 30fps
  • Increase monitoring flexibility with full Pan, Tilt and Zoom
  • Enjoy 20x Optical zoom from a compact lens
  • Superior low-light performance and Auto SSC
  • Flexible monitoring and recording with dual H.264 streams

Características detalladas

Examina con más detalle Canon VB-M42

Superior image quality and best-in-class optics


Protect and monitor your site in 1.3 MP resolution with superior image quality, utilising Canon DIGIC DV III image processor. The VB-M42 features a powerful 20x optical zoom lens with 12x digital zoom delivering a total of 240x zoom. The lens delivers 60.4° wide angle of view (at wide end) and fast autofocus. Pan, tilt and zoom remotely to enjoy 1.3 MP video resolution with excellent low-light performance.

Powerful video performance


Canon DIGIC NET II network processor features an H.264 encoder, which creates both high-quality and high-compression video. Meanwhile, enhanced noise reduction (NR) control and colour reproduction gives you visible colour even in low-light conditions. Auto Smart Shade Control (Auto-SSC) improves visibility of foreground objects in bright backlit scenes. Class-leading low-light capabilities and True Day/Night operation ensures great results in a range of environments.

Intelligent and security focused


Intelligent Functions help operators to identify alarming situations, by analysing differences between different areas. It is possible to use up to 15 functions in parallel on one camera. A choice of six different Intelligent Functions includes Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detection. Detected activity can be set to activate recording, uploading images to a server or sending an email notification. By using an SD card you can retain and review alarm recorded footage without the content being first downloaded to a PC. SSL/TLS encryption ensures a secure connection between the camera and server.

Enhanced compatibility and convenience


Compliance with the latest, ONVIF v2.4 Profile S makes it convenient to create a solution with ONVIF-compliant video management software. Canon also supports seamless integration through the use of the

Especificaciones técnicas

Obtén más información sobre Canon VB-M42, sus funciones y lo que puede hacer.

DIGIC NET II

Procesamiento de red eficiente

Digic DV III

Gestiona la calidad de imagen y el control

1.3 Mega Pixel

Imágenes de alta calidad

PTZ

Panorámica, inclinación y zoom

Drag to move

Control PTZ sencillo

Area zoom

Dirección sencilla

Preset Tours

Vigilancia automatizada

Auto DayNight

Filtro IR extraíble

Intelligent Function

Análisis de contenido de vídeo

Power over Ethernet

Alimentación a través de Ethernet (PoE)

SD Card

Grabación avanzada

CCMT

Gestión múltiple de varias

  • Unidad principal de la VB-M42
  • Conector de alimentación
  • CD-ROM de instalación
  • Guía de instalación (J)
  • Folleto de tarjeta de garantía

Calculadora de ángulo de visión (AOV)

Calculadora de espacio en disco necesario (RDS)

Simulador de diseño de cámara (CLS)
